Product Description

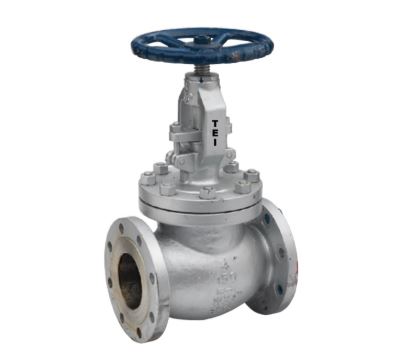

Product: Cast Steel Globe Valve
Product Standard: BS 1873
Pressure/ClassRating: Class-300
Body Material cum Standard: Ccs ASTM A216 Gr.WCB
Description: Boiled Cover, Outside Screw & Yoke Type, Rising Stem
Type of Seat: Renewable seat
Type of Disc: Renewable disc
Trim: Stem SS AISI-410
Yoke Bush: Aluminum Bronze
Gland Packing: Expanded Pure Flexible Graphite
End Details: Flanges as per ANSi B 16.5 Class 300 R.F. Undrilled
Testing & Certification
Body Test Pressure: 76 Bar g (1102 Psig) Hyd.
Seat Test Pressure: 56 Bar g (815 Psig) Hyd. & 6.9 Bar g (100 Psig) Air
Tested as per: API 598/ANSI B16.34/BS:6755 Part 1
Maximum Working Temperature: 425C
Certification: Test Certificate in Form ll-C as per IBR is furnished with every supply.
