Product Description

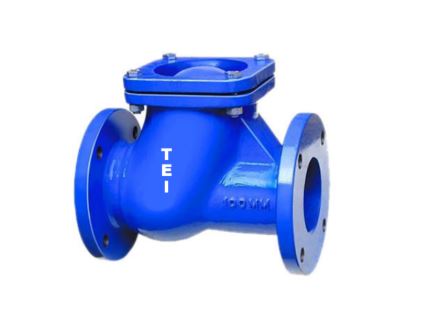

Product: Cast Steel Swing Check Valve
Product Standard: Conforming to BS 1868/ANSI B 16.34
Body Material cum standard: CCS ASTM A-216 Gr.WCB
Product Description: Bolted Cover
Type of Seat: Renewable Seat
Type of Disc: Renewable Disc
Hinge Pin: AISI 410 Stainless Steel
End Details: Flanges as per ASME B 16.5 Class-300 R.F. Undrill
Testing & Certification
Body Test Pressure: 76barg Hyd. 435Psig.
Seat Test Pressure: 56barg Hyd. 320Psig.
Certification: Our Works' Test Certificate is furnished with every supply
