Product Description

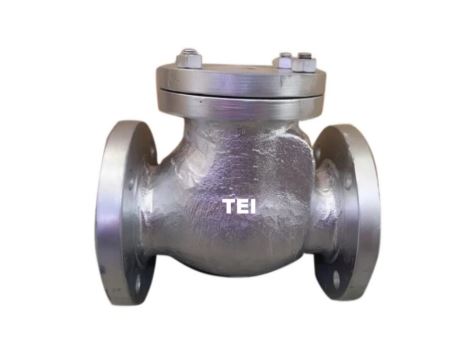

Product: Cast Steel Swing Check Valve
Standard: BS 1868/ANSI B16.34
Pressure/Class/Rating: Class-150
Body Material cum Standard: CCS ASTM A216 Gr.WCB
Description: Bolted Cover
Type of Seat: Renewable seat
Type of Disc: Renewable disc
Hinge Pin: SS AISI-410
End Details: Flanges as per ANSI B 16.5 Class 150 R.F. Undrilled
Testing & Certification
Body Test Pressure: 30 Bar g Hyd. 435 Psig
Seat Test Pressure: 22 Bar g Hyd. 320 Psig
Additional Test: Seat is also tested at low pressure of 25% of the above test
Tested as per: API 598/ANSI B16.34/BS:6755 Part 1
Max Working Temperature: 4000C
Certification: Test Certificate in Form lll-C as per IBR is furnished with every supply.
Application
[ Water ] [ Oil ] [ Steam ]
