Product Description

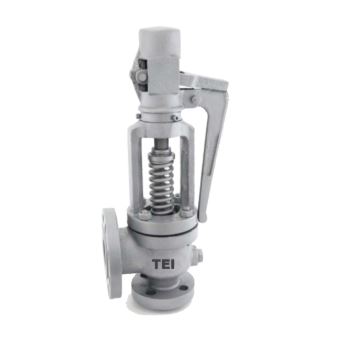

Product : Cast Steel Single Post Full Lift Safety Valve
Type of Pattern : Right Angle
Body Material & Standard : CCS (ASTM A-216 Gr. WCB)
Product Description : Spring Loaded Full Lift
Type of Seat : Renewable Seat
Type of Disc : Renewable Disc
Trim : S5 to AISI 304
End Details
Inlet Flanges : B5 10 Table-H
Outlet Flanges : B5 10 Table-E
Testing & Certification
Body Test Pressure : 53 kg/cm² Hyd.
Maximum Working Pressure : 26.5 kg/cm²
Maximum Working Temperature : 425°C
Note : Our Works' Test Certificate is furnished with every supply.
