Product Description

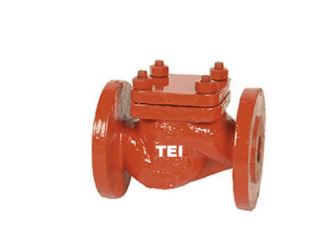

Product : Cast Steel Horizontal Check Valve
Product Standard : BS 5160
Pressure / Class / Rating : PN 40
Body Material cum Standard : CCS (ASTM A216 Gr.WCB)
Description : Bolted Bonnet
Type of Seat : Renewable seat
Type of Disc : Renewable disc
Trim : SS AISI-410
End Details : Flanges as per BS 4504 Part-1 / DIN 2545 RF undrilled
Testing & Certification
Body Test Pressure : 76 Bar g (1100 Psig) Hyd.
Seat Test Pressure : 40 Bar g (580 Psig) Hyd.
Maximum Working Temperature : 400ºC
Test Certificate : Form III-C as per IBR is furnished with every supply.
Application
[ Water ] [ Steam ]
