Product Description

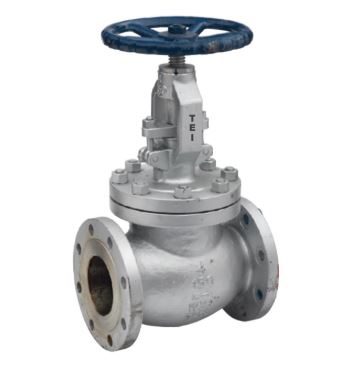

Product: Cast Steel Globe Valve
Product Standard: BS 1873
Pressure/Class Rating: Class 600
Body Material cum standard: CCS (ASTM A-216 Gr.WCB)
Product Description: Bolted Bonnet O/S Yoke Type Rising Stem
Type of Seat: Renewable
Type of Disc: Renewable Disc
Trim: S5AlSi-410
End Details: Flanges as per ASME B 16.5 Class 600 RF Undrilled
Testing & Certification
Body Test Pressure: 153 Barg (2220 Psig) Hyd.
Seat Test Pressure: 112 Barg (1630 Psig) Hyd. 6.9barg (100 Psig) AIR
Our Works' Test Certificate is furnished with every supply
