Product Description

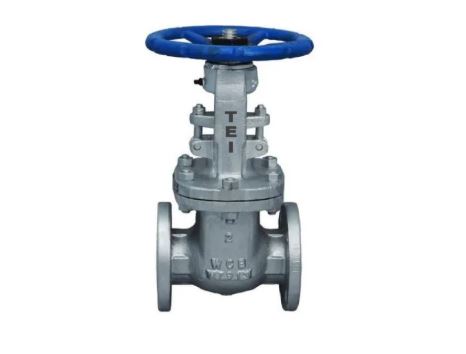

Product : Cast Steel Gate Valve
Product Standard : Conforming to BS-1414/API 600
Type of Pattern : Straight Type
Pressure / Class Rating : Class 600
Body Material cum standard : CCS (ASTM A-216 Gr. WCB)
Product Description : Bolted Bonnet O/S Yoke Type Rising Stem
Type of Seat : Renewable
Type of Wedge : Solid/Flexible Wedge
Trim : SS AISI-410 & Aluminium Bronze Sleeves
End Details : Flanges as per ASME B 16.5 Class 600 RF Undrilled
Testing & Certification
Body Test Pressure : 153 Barg (2220 Psig.) Hyd.
Seat Test Pressure : 112 Barg (1630 Psig.) Hyd.
Seat Test Pressure : 6.9barg 100 Psig. (AIR)
Our Works' Test Certificate : is furnished with every supply.
