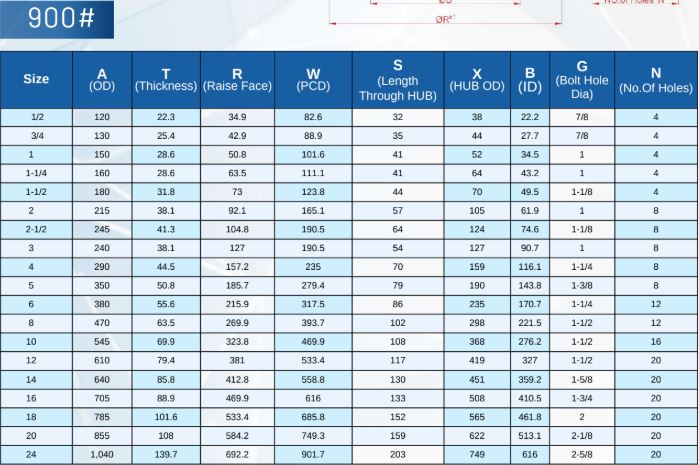

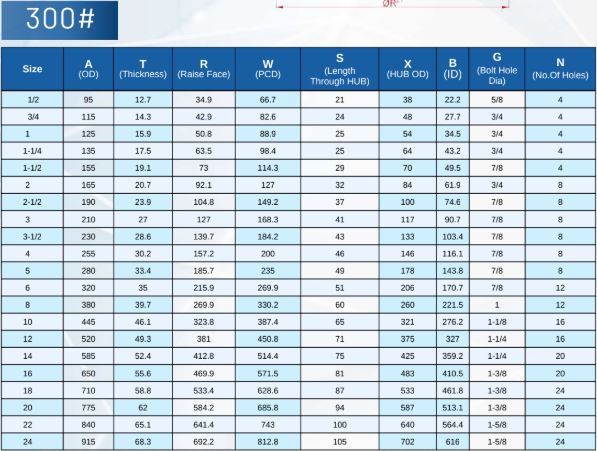

SORF

Slip On Flange

This flange is slipped over the pipe and after that, it will be fillet welded, there will be two fillet welds and these welds are at the inside and outside of the flange. This type of flange connection is very fragile when compared to the weld neck type. Mostly these flanges are selected because of their lower installation cost and also because they can handle slight misalignment.

Grades

ASTM A182/182M ASME SA182/182M | F 304, F304L, F304H, F310, F316, F316L, F316H, F347, F347H, F317, F317L, F321, F321H, F316TI, F347, F347H, F51, F60, F53, C276, C222, MONEL 400, INCONEL 625, INCONEL 825, TITANIAUM AND ETC.

JIS G3214 | SUS F304, SUS F304L, SUS F304H, SUS F316, SUS F316L, SUS F316H, SUS F347, SUS F347H, SUS F317, SUS F317L, SUS F321, SUS F321H

DIN 10222-5 | 1.4301, 1.4306, 1.4307, 1.4541, 1.4571, 1.4401, 1.4404, 1.4410, 1.4438, 1.4450, 1.4462
