Product Description

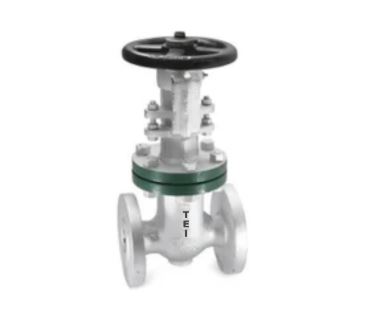

Product : Cast Steel Gate Valve
Product Standard : BS 1414 / API 600
Pressure / Class / Rating : Class 300
Body Material cum Standard : CCS (ASTM A216 Gr.WCB)
Description : Bolted Bonnet, Outside Screw & Yoke Type, Rising Stem
Type of Seat : Renewable seat
Type of Disc : Renewable disc
Trim : Stem SS AISI-410
Yoke Sleeve : Aluminum Bronze
Gland Packing : Expanded Pure Flexible Graphite
End Details : Flanges as per ANSI B 16.5 Class 300 R.F. Undrilled
Testing & Certification
Body Test Pressure : 76 Bar g (1110 Psig) Hyd.
Seat Test Pressure : 56 Bar g (815 Psig) Hyd. & 6.9 Bar g (100 Psig) Air
Tested as per : API 598 / ANSI B16.34 / BS : 6755 Part 1
Maximum Working Temperature : 425ºC
Test Certificate : Form III-C as per IBR is furnished with every supply.
Application
[ Water ] [ Oil ] [ Steam ]
