Product Description

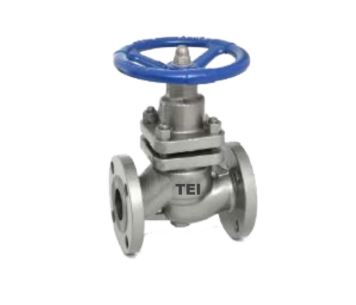

Product : Cast Steel Piston Valve
Pressure/Class Rating : Class-150
Body Material & Standard : C.C.S. (ASTM A-216 Gr. WCB)
Product Description : Bolted Bonnet O.S. Yoke Type Rising Stem
Type of Seat : Renewable
Type of Wedge : Piston Type
Trim : AISI-410
End Details
Ends : Flanges as per ASME B 16.5 Class-150
Testing & Certification
Body Test Pressure : 30 Barg (435 Psig.) Hyd.
Seat Test Pressure : 22 Barg (350 Psig.) Hyd.
