Product Description

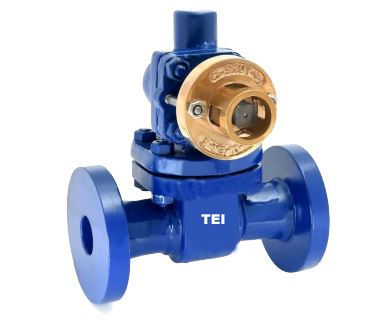

Product : Cast Steel Parallel Slide Blow off Valve
Body Material cum Standard : CCS (ASTM A216 Gr.WCB)
Description : Rack and Pinion operated with key
Type of Seat : Renewable seat
Type of Disc : Renewable disc
Gland Packing : Expanded Pure Flexible Graphite
Trim : SS AISI-410 / Monel
End Details : Flanges as per BS 10 Table J FF Undrilled
Testing & Certification
Body Test Pressure : 700 Psig Hyd.
Seat Test Pressure : 350 Psig Hyd.
Working Pressure : Max. BOP 350 Psig. (24.61Kg/cm²)
Maximum Working Temperature : 400ºC
Test Certificate : Form III-C as per IBR is furnished with every supply.
Application
[ Water ] [ Steam ]
